Kenwood DMX5023DABS 6.8" Double DIN Short body Navigation with Apple CarPlay Android Auto W/ Aerial

Audio And Video Connectivity On The Move With Apple Carplay And Android Auto

Connect your smartphone via USB to mirror its display on the DMX5023DABS system. Operate your favourite Apple and Android applications with the DMX5023DABS touch panel.  Apple Carplay and Android Auto connectivity allow you to control your compatible applications directly from the large touchscreen head unit of the DMX5023DABS.  Stream your music content via Spotify or navigate to your destination using the Waze navigation app, which features live traffic updates and speed camera alerts. The Kenwood DMX5023DABS is a true in-car multimedia system. Play your stored media, both audio and video, from USB storage devices (See file compatibility below) or stream directly from your smartphone via Bluetooth or USB cable.  Take advantage of the DAB+ digital radio and listen to the crisp clear digital radio broadcast during your journey.

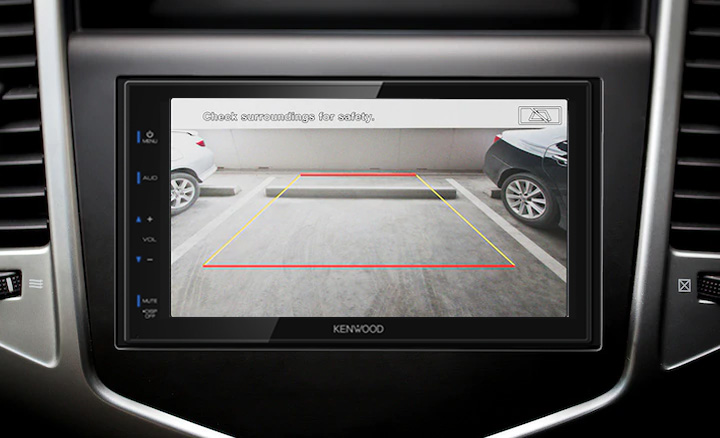

Connect a rearview camera and view its feed through the screen, along with guidelines that help you back in safely.

Product Features:

Key Features

• 6.8" WSVGA Display with Capacitive Touch Panel.
• Wired Apple CarPlay® & Android Auto™ - Connect via USB
• Wired iPhone / Android USB Mirroring.
• Built-in DAB+ Digital radio Tuner
• Built-in Bluetooth® technology for hands-free calling & Audio Streaming.
• High Current 2.1A Charging USB port.
• Front & Rear + Subwoofer (Mono) Preouts - 2.5V
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Single DIN Short Chassis Design for easy installation

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White colour
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller Yes, (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPhone
• Works with Apple CarPlay
• Works with Android Auto
• USB Mirroring for iPhone / Android
• Firmware upgradeable

Monitor Features

• Screen Type 6.8" Wide SVGA
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High-Resolution WSVGA Screen 1024 x 600 pixel
• LCD backlight  White LED
• Display Mode  3 Mode (Normal(default) / 16:9 / 4:3)
• Screen Adjustments Brightness / Tint / Colour / Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirroring / CarPlay / Android Auto.
• Mechanism Type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
• English (UK) (Default) ► English (US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Hebrew ► Greek ► Polish ► Czech ► Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type  standard
• Background Customize 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guidelines, Built-in, customizable

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets
• Service list by alphabet order
• Alphabet Search
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Slide Show
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands-Free Profile (HPF) Ver. 1.8
• Audio Streaming (A2DP), (SBC/AAC)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialled, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.6
• iPhone & Android automatic pairing via USB
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise cancelling microphone built-in
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable  USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video file

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB terminal, rear side / 1m cable/fix
• USB Type 2.0 High speed
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current  2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay via USB

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Via USB
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 2 RCA: FRONT/REAR + SUB (mono)
• Pre-out Output Level  2.5V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

Connectivity

• DC-Cord 22pin to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non-Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function

Tuner Specifications

• FM range: 87.5Mhz - 108MHz (50Khz step)
• FM Usable Sensitivity  1.8μV/75ohm (S/N 30dBf)
• FM Frequency Response 30Hz ~ 14kHz (± 3dB)
• FM Signal to noise ratio (Mono) 50dB
• FM Stereo Separation (1kHz)  35dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 99μV

DAB Tuner Specifications

• Band III - Frequency range 174.928 MHz - 239.2MHz
• Mode Band III
• Sensitivity - 98dBm
• Signal to noise ratio 82dB
• Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
• Output Voltage 14V (10.5V to 16V allowable)
• Maximum Current < 100 mA

Bluetooth Specifications

• Technology Bluetooth V5.0
• Frequency 2.402 - 2.48 GHz
• Output power +9 dBm (max), Power Class 1
• Maximum range Line of sight approx. 10 metres
• Handsfree profile (HFP), V 1.8
• Advanced audio distribution profile (A2DP), V 1.3
• Audio Codec SBC/AAC
• Audio/Video remote control profile (AVRCP) , V1.6
• Phonebook access profile (PBAP), V1.2

USB Specifications

• USB Version compatibility USB 2.0 High Speed
• File System FAT 16/32 / exFAT / NTFS
• Maximum Supply current 2100mA
• D/A Converter 24bit
• Video Decoder MPEG1/2/4, WMV, H.264, mkv
• Audio Decoder MP3, WMA, AAC, WAV, FLAC

Audio Specifications

• Maximum Power 50 W x 4
• Output Power (DIN45324,+B=14.4v)  22 W x 4
• Output frequency band 20 Hz ~ 20 kHz
• Preout Level 2500 mV / 10 kOhm,
• Preout Impedance ≤ 1400 Ohm
• Speaker Impedance 4 Ohm ~ 8 Ohm

Video Specifications

• Colour System of External Video Input NTSC/PAL
• External Video Input Level (RCA) 1 Vpp / 75 Ohm
• Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

• Screen size (Diagonal) 6.8 Inches Wide
• Display system Transparent TN LCD Panel
• Drive system TFT Active Matrix System
• Number of Pixels 1843200pixels (1024(H) x 600(V) x RGB)
• Effective pixels 99.99%
• Pixel arrangement RGB Striped
• Back lighting LED (Light Emitting Diode)

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Dimensions (WxHxD) 178 x 100 x 86mm
• Weight 1070 gr.
• Weight, inclu. sleeve & escutcheon 1.07 kg

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord 25 cm
• GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
• Multi-Language Instruction Manual Included
