BLAM KIT 165R3 165mm (6.5") 3 (2+1) 2-Way Separate-Channel Loudspeaker System (PAIR)

3 (2+1) Separate-Channel Loudspeaker System

BLAM Relax 165R3 is a 3-way separate set of the BLAM Relax collection, which includes 6.5″ midbass, 3″ midrange and 20mm silk calotte tweeters.

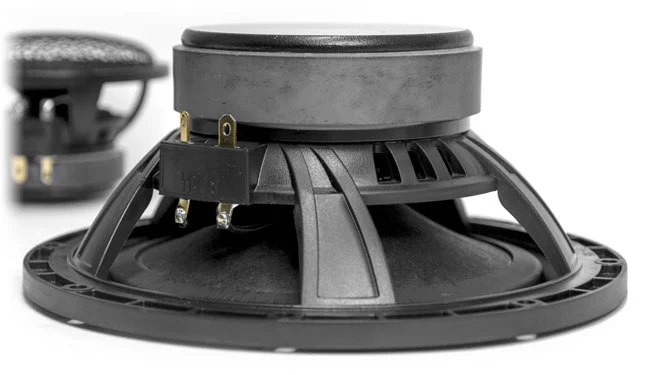

Midbassos The
midbassos of the series are equipped with a fiberglass-reinforced composite body, a paper pulp cone and a rubber upper suspension. The midbass has a 25mm (1″) voice coil and a large 85 x 17mm magnet.

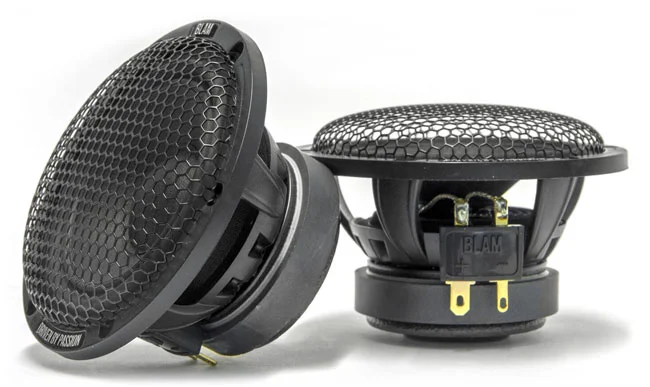

Mid-tones
Like the mid-bass, the mid-tones are also equipped with a fiberglass-reinforced composite body and a paper pulp cone. The mid-tones have sturdy metal nets permanently installed, and the elements require an installation depth of about five centimeters.

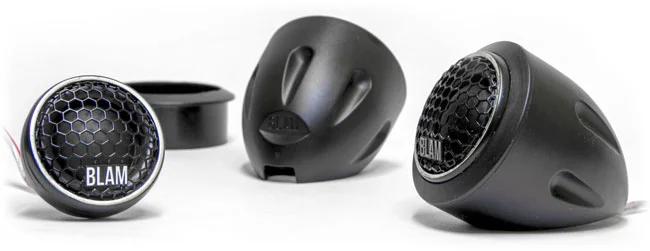

Trebles
The trebles are small in size and when the mounting collars are removed from the elements, the trebles are easy to install in the original treble positions of many cars, hidden behind the original nets. Also included are elegant "bullet" model surface mounting cups and recessed cups that allow the tweeters to be elegantly installed in, for example, mirror triangles.

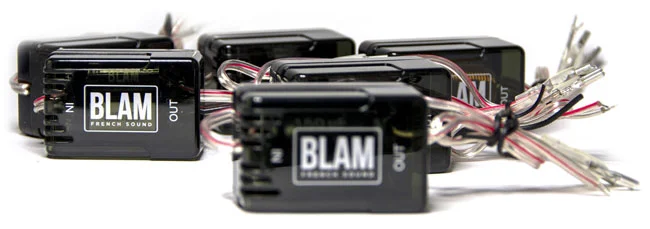

Distribution filters
The BLAM Relax 165R3 series comes with six separate distribution filters, i.e. each element has its own 6dB/oct distribution filter, which is installed between the speaker cables. The filters are very compact, so they are easy to install. The treble filter also has a separate level control, which can be used to drop the treble level by three decibels if desired. Split filters are all outwardly similar, but inside the split filters there is an indication of which element the filter is.
W = Woofer
M = Mid
T = Tweeter



Technical details

This kit includes two 165mm (6.5″) woofers, two 80mm (3″) midrange drivers, two 20mm (3/4″) soft-dome tweeters and six separate crossovers.

High performance 3-way split system 165 mm
Max Power 150 W – Nominal Power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω

Composition

• 165R3 WOOFER 165 MM
  165 mm (6.5”) woofer
  Maximum power 150 W / Rated power 75 W
  Frequency response 60 Hz – 8 kHz
  Sensitivity 95 dB – Impedance 2 Ω


Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)

• R80 MEDIUM SPEAKER 80 MM
  Max Power 100 W – Nominal Power 25 W*.
  Frequency response 150 Hz – 23 kHz
  Sensitivity 86 dB – Impedance 3 Ω
  Mounting depth 45.5 mm (1.8″)

Glass fiber reinforced composite bowl – High quality cellulose pulp membrane – Peripheral butyl suspension – Long life spider “Conex” – 20 mm coil on fiberglass support – 55 mm x 10 mm ferrite motor

• R2T20 SOFT DOME TWEETER
  High quality 20 mm soft dome tweeter
  Maximum power 100 W / Rated power 10 W
  Frequency response 2.5 kHz – 25 kHz
  Sensitivity 90 dB – Impedance 3 Ω

N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output

• FILTERS
  2 x 6 dB/octave woofer low-pass filters: BFR3-W
  2 medium high-pass filters 6 dB/octave : BFR3-M
  2 high-pass filters tweeter 6 dB/octave : BFR3-T
  Tweeter level adjustable to 0 dB or attenuated to -3 dB

Accessories included:
Fixing screws
Mounting accessories for tweeters – Including tilted bracket
Instructions for use
