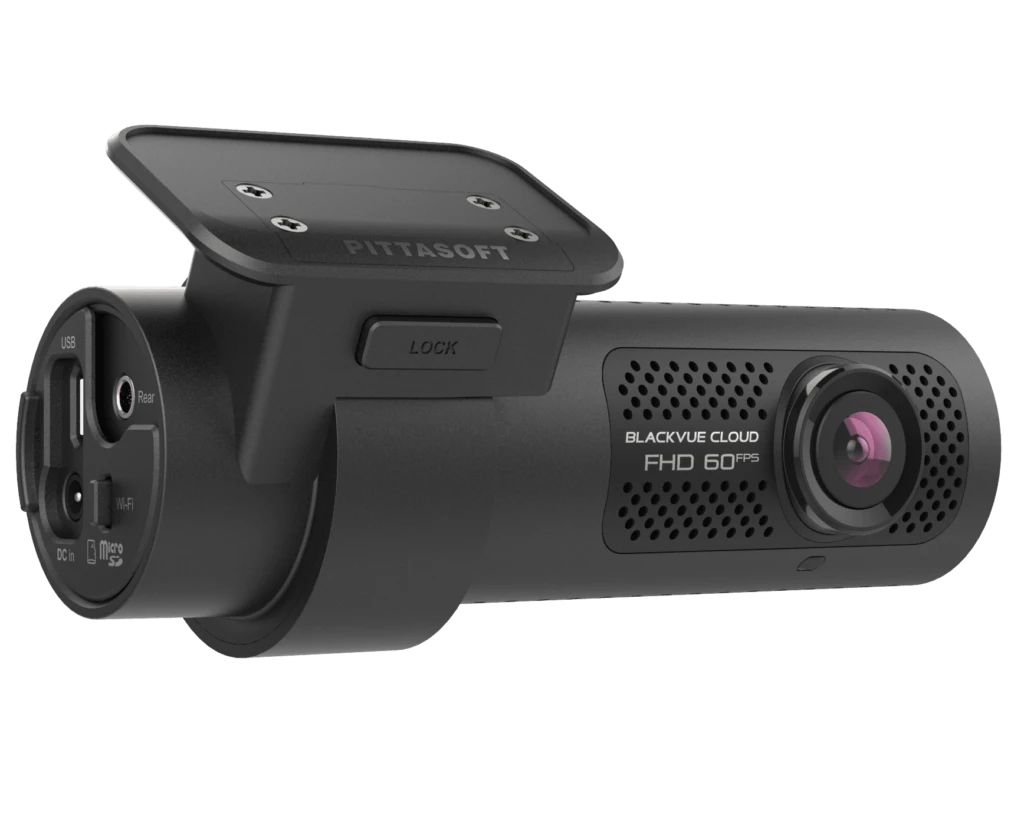

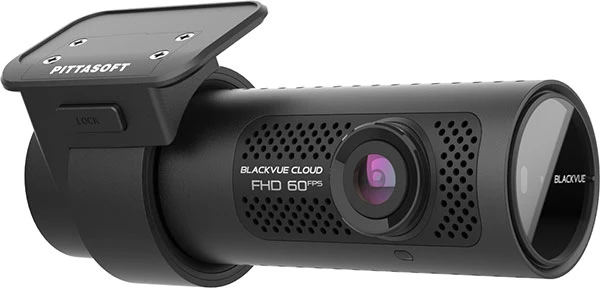

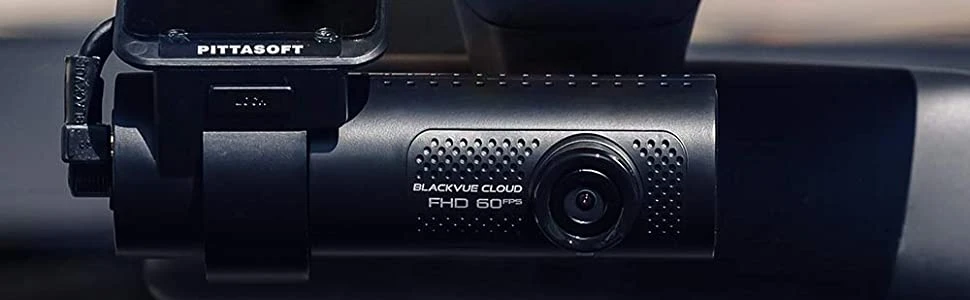

Blackvue DR770X-1CH 128GB Driver Recording Dashcam Camera

BLACKVUE DR770X-1CH 128GB - is a single-channel dash cam with BlackVue Cloud connectivity.


In stock
Special Price £324.99 Regular Price £349.99 Save £25.00

DR770X 1CH

The DR770X-1CH is our benchmark single-channel dash cam, combining Full HD 1080p video at 60fps, with LIVE BlackVue Cloud features and optional always-on 4G LTE connectivity.

  • Full HD 1080p video at 60 frames per second
  • Enhanced Night Vision for optimal clarity
  • Loop Recording & Event Overwrite Protection
  • Intelligent Parking Mode for 24/7 recording
  • Always-On 4G with optional CM100GLTE
  • BlackVue Cloud LIVE features
  • GPS adds location and speed data
  • Wi-Fi for wireless connection to smartphone
  • iOS/Android App, PC/Mac desktop viewer

With Full HD 1080p performance, the DR770X-1CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. Also included is GPS logging, Wi-Fi, Cloud-connectivity and impact and motion detection. All this in a stealthy compact design.

The DR770X is also compatible with BlackVue Cloud – a unique suite of LIVE app-based features that remotely connecting you with your vehicle, providing additional functionality including Live View, Remote Video Playback, Video Backup, Realtime Tracking and Emergency Notification Alerts.

The DR770X is upgradable to full 4G always-on Cloud Connectivity, with the addition of the CM100LTE external connectivity module and supplied data SIM, meaning that you are always connected to your dash cam via the BlackVue app, and always able to receive notifications and remotely view video clips in the event of an incident.

Full HD With Starvis

Full HD 1080p with smooth 60 frames per second video and Sony STARVIS image sensor for superior quality day or night.

Cloud Connected

Compatible with BlackVue Cloud, connect with your vehicle remotely via the BlackVue app and view LIVE video, download clips etc.


Add the optional CM100LTE 4G connectivity module for always-on connection to Blackvue Cloud and it’s unique LIVE features.

40GB Of Monthly Data

The optional CM100LTE connectivity module includes a Vodafone Smart SIM, providing a monthly data allowance of 40GB for only £4.00 per month.

Parking Mode

The DR770X-1CH protects your vehicle even when you’re not around, thanks to BlackVue’s unique Intelligent Parking Mode.

GPS & Dual Band WIFI

Built-in GPS adds optional location and speed data overlay to recordings while Wi-Fi provides wireless connection to smartphones.

APP Control

The BlackVue app for iOS & Android provides access the your dash cam’s settings, video files and LIVE BlackVue Cloud features.

Full HD 60FPS + Sony Starvis

With Full HD 1080p resolution, smooth 60 frames per second footage, ultra-wide lens with a 139° viewing angle, and SONY’S remarkable industry-leading STARVIS image sensor, the DR770X-1CH provides class-leading protection for your vehicle, in any lighting conditions.

Blackvue Cloud

BlackVue Cloud is a suite of innovative ‘connected’ features that take the BlackVue user experience to new levels, unlocking the true power of your dash cam and remotely connecting you with your vehicle.

Let your BlackVue watch over your car, informing you immediately of incidents such as impacts, via Push Notifications to your Apple or Android phone. Connect to your BlackVue dash cam anytime, from anywhere, and check on your car with Remote Live View.

Play recorded video clips remotely and back-up important ones to the Cloud or your phone. Monitor progress and access location data, GPS logs and Driving Reports courtesy of the realtime Live Tracking feature.

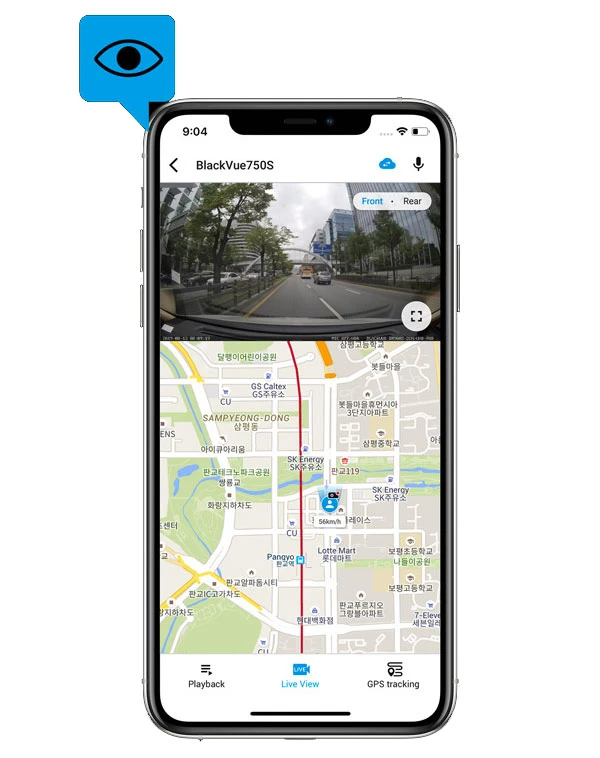

Remote Live View

Monitor your vehicle in real time, from anywhere, at any time.

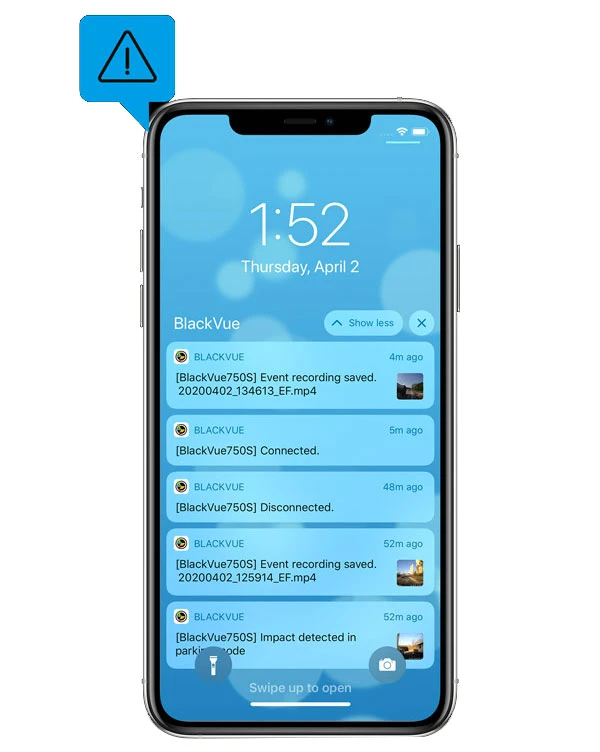

Emergency Alarm

Get a notification whenever something happens to your car.

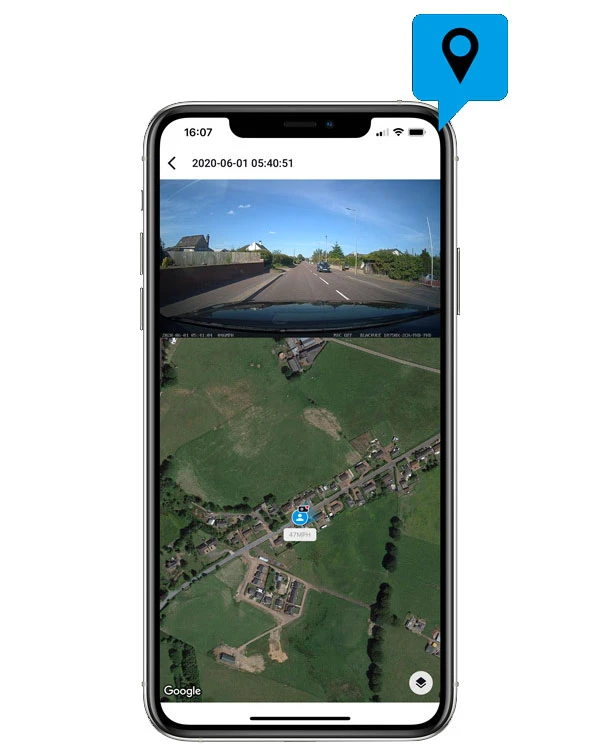

GPS Tracking

Visualise your car’s location and speed on a moving Google map.

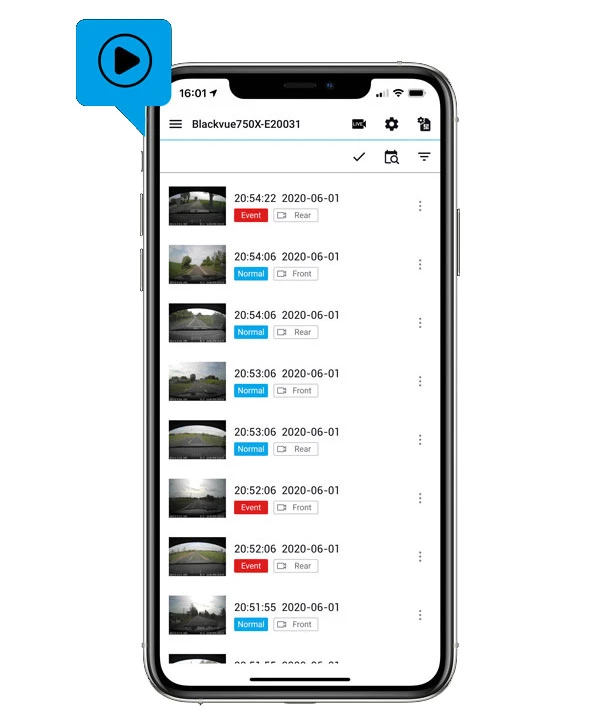

Remote Video Playback

Playback video clips stored in the Cloud or on your dash cam at any time on your smartphone.

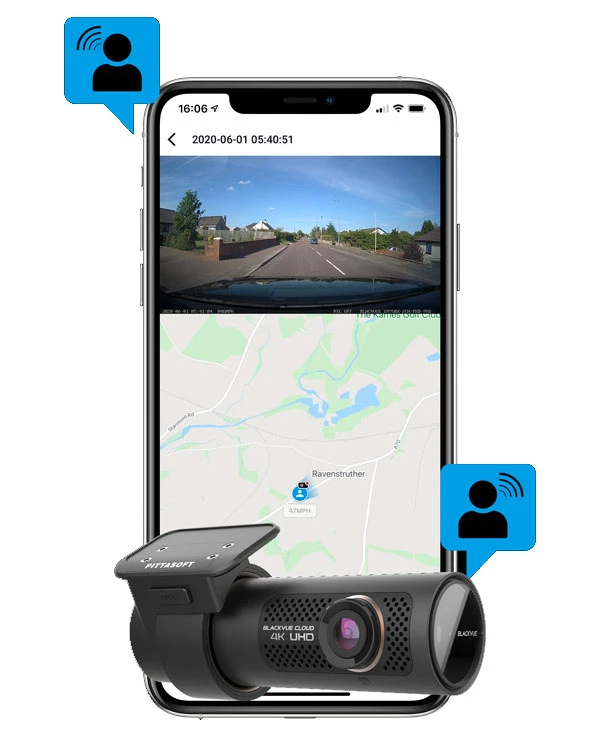

Two Way Voice Calls

Talk directly with people in the car via the internal speaker and microphone in the dash cam.

Always On Video Security

The new BlackVue DR770X-1CH is more than just a dash cam, it is an advanced video surveillance system for your car, watching over your vehicle, informing you immediately of incidents such as impacts, via Push Notifications to your Apple or Android phone.

Add the optional CM100LTE 4G connection module and connect to your BlackVue dash cam anytime, from anywhere, and check on your car with Remote Live View. Play recorded video clips remotely and buck-up important ones to the Cloud or your phone. Monitor progress and access location data with realtime Live Tracking. Enjoy two-way communications with the driver via the BlackVue app and your camera’s internal loudspeaker and mic.

Intelligent Parking Mode

Dash cams are designed to record your drive, but did you know that the BlackVue DR770X-1CH can also monitor your vehicle when you’re not around?

BlackVue’s unique Intelligent Parking Mode is ideal if you worry about hit-and-runs, theft or vandalism while your vehicle is parked and left unattended.

The DR770X-1CH automatically switches to Parking Mode when the ignition is switched off, and will continue to monitor your vehicle, recording and storing events for review later – or alerting you in real time via the BlackVue App. Video buffering ensures that your camera will also record the seconds leading up to the event, ensuring you have the whole picture.

Thanks to in-built power management circuitry, the DR770X-1CH will ensure that your camera will never deplete your vehicle’s battery when operating overnight, switching-off should the car’s battery level drop below a pre-set level.

For extended recording times simply add a Power Magic Ultra Battery B-130X, B-124X or B-112 battery.

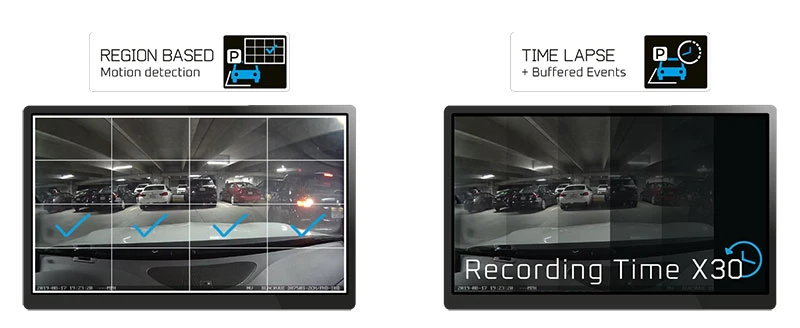

The DR770X-1CH supports two Parking Mode options, Motion and Impact Detection, and Time Lapse.

Motion and Impact detection mode uses your cameras image sensor to detect movement, and the inbuilt accelerometer/G-sensor to detect bumps or impacts. To reduce the number of unwanted recordings triggered by motion and movement, the DR770X-1CH can specify areas to ignore, eliminating recordings triggered by things like swaying trees, far-away moving objects, etc.

In Time Lapse mode, to reduce the size of the video files and save SD card space, the camera will continuously record at just 1FPS (one frame per second), rather than the standard 30/60 FPS. All event clips however are recorded at full resolution and 30FPS. A standard 64GB microSD card can store over 48hrs of time lapse video at the highest (Extreme) video quality level.

CM100LTE With 4G Connectivity

Simply add the new BlackVue CM100LTE connectivity module and a 4G Data SIM card to your DR770X-1CH setup to enjoy always-on connectivity to BlackVue Cloud.

That means whenever and wherever, you’ll receive notifications from the BlackVue app should something happen to your vehicle, giving you the option to view the footage remotely. And you’ll always have access to Cloud-based features like Live View, Video Back-Up and Real Time Tracking.

The CM100LTE is supplied with a Vodafone SIM card. Activate via the Vodafone Smart App to unlock a massive 40GB monthly data allowance for only £4.00 per month, the best value data plan available in the UK. Alternatively use your own choice of Network Provider, SIM card and data plan.

Blackvue APP And Viewer

The BlackVue app for iOS and Android is free to download and use and allows you to conveniently control your dash cam from your smartphone.

Access your camera’s configuration settings, video files and use camera Live View for easy set-up and positioning of the DR770X-1CH in your vehicle.  The app also controls BlackVue Cloud and its unique set of connected features including Emergency Notifications, Live View, Video Back-Up and Real Time Tracking.

BlackVue App for iOS and Android

BlackVue Viewer for Windows and Apple Mac is free to download and allows you to easily configure your camera’s settings and view video clips.

Access recordings on your camera’s microSD card, simultaneously viewing front and rear camera footage, moving maps and GPS data including time, date and speed. All video clips are listed by date, time and recording mode (Normal, Parking, Event, etc.), making it simple to quickly identify and archive important footage.

BlackVue Viewer also provides access to your camera’s settings, as well as the ability to update your dash cam’s firmware when necessary.

Viewer also allows you to connect to your DR770X-1CH over the Cloud, accessing Live View, Real Time Tracking etc., anytime and anywhere.

For Extended Parking Mode Operation

Power your BlackVue dash cam in Parking Mode for longer with a dedicated smart battery pack. Fast-charging, long-lasting and expandable. Never miss an incident, a BlackVue Power Magic battery adds valuable additional recording time to your set-up without troubling your vehicle’s battery, for ‘always-on’ functionality. Visualise your battery status via the FREE BlackVue Battery Manager App for iOS & Android.

Battery models available; B-112, B-124X & B-130X.


  • Colour / Size / Weight Black / Width 118.5 mm x Height 36 mm / 92g
  • Memory microSD Card (64 GB/128 GB/256 GB)
  • Recording Modes
    • Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
    • * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
  • Camera STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
  • Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
  • Resolution / Frame Rate Full HD (1920×1080) @60fps
  • *Frame rate may vary during Wi-Fi streaming.
  • Video Codec H.264 (AVC)
  • Image Quality
    • Highest (Extreme): 25 + 10 Mbps
    • Highest / Highest (Sports): 12 + 10 Mbps
    • High: 10 + 8 Mbps
    • Normal: 8 + 6 Mbps
  • Video Compression Mode MP4
  • Wi-Fi Built-in (802.11 b.g.n)
  • GPS Built-in (Dual Band : GPS, GLONASS)
  • Bluetooth Built-in (V2.1+EDR/4.2)
  • LTE External
  • Microphone Built-in
  • Speaker (Voice Guidance) Built-in
  • LED Indicators
    • Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED   Side : Proximity Sensing Indicate LED
  • Button
    • Wi-Fi button: Press once to turn on/off Wi-Fi. Proximity sensor: Touching the proximity sensor turns on/off audio recording or triggers manual recording depending on the firmware settings.
  • Sensor 3-Axis Acceleration Sensor
  • Backup Battery Built-in super capacitor
  • Input Power DC 12V-24V (DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
  • Power Consumption
    • Normal Mode (GPS On / 1CH On) : 240mA / hour/ 12V
    • Parking Mode (GPS Off) : 190mA / hour / 12V
    • Parking Mode (WiFi Off / GPS Off) : 185mA / hour
    • * Actual power consumption may vary depending on use conditions and environment
  • Operation Temperature -20 °C ~ +85 °C (-4 °F ~ +185 °F)
  • Storage Temperature -20 °C ~ +90 °C (-4 °F ~ +194 °F )
  • High Temperature Cut-Off Approx. +90 °C (194 °F)
  • Certifications FCC, CE, UKCA, RoHS, Telec, WEEE, ISED
  • Software BlackVue Viewer
  • * Windows XP or higher and Mac Yosemite OS X (10.10) or higher
  • Application BlackVue Application (Android 4.4.2 or higher, iOS 9.0 or higher)
  • Other Features *Adaptive Format Free File Management System

Whats In The Box

  • DR770X 1-CH Front Camera
  • Quick start guide
  • Cable clips (5EA)
  • microSD card 64GB
  • microSD card reader
  • Spare mount sticky pads
  • Hardwiring power cable
  • Cigarette lighter power adapter
  • Pry tool
