Audiocontrol EPIC750 - EPIC Series Class D 750 watt Mono Amplifier

Compact, power-packed, and affordable

AudioControl's EPIC750 amplifier offers you more power per square inch and watts per dollar than most other car amplifiers on the market today. This mono subwoofer amp uses Class D technology to punch above its weight, sending out up to 750 watts and make your sub sing out loud and clear with minimal stress to your car's electrical system. All this power is packed into a rugged, compact amp that'll fit in a lot of different spaces in a lot of different vehicles.

Bass system power, control, and tuning

Lovers of loud bass can strap two EPIC750s together to create a 1500-watt subwoofer system. The amplifier was designed specifically for subwoofers as it features low-pass and subsonic crossover filters to eliminate unwanted high- and ultra-low-frequencies from the mix, a tunable bass boost for extra oomph, and a wired remote control so you can fiddle with the bass volume from your front seat. The amp has preamp inputs only, so you'll need a line output converter or a similar device like an EPICENTER to connect to a factory system if you're not using an aftermarket radio with RCA outputs.

Made for THE EPICENTER®

For ultimate bass sound and connectivity, the EPIC750 includes a power and ground connection harness that'll work with AudioControl's EPICENTER bass enhancers, as well as with their other line output converters that take factory speaker-level signals and make them suitable for the amp's input.

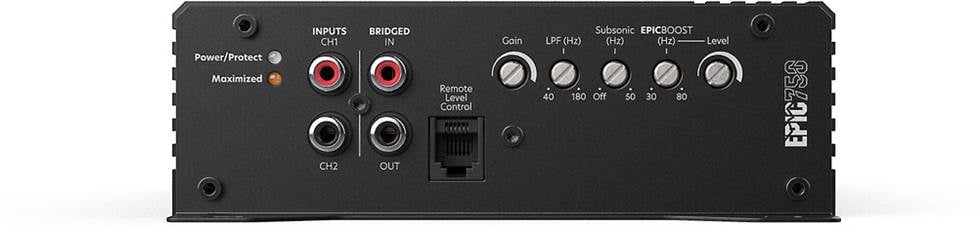

EPIC750 input and control panel

Product Features:

Inputs

• Line-Level Inputs: 500mV – 6V RMS

Outputs

• Continuous Power (RMS) @ 14.4V1 x 300 Watts @ 4 ohms
• 1 x 500 Watts @ 2 ohms
• 1 x 750 Watts @ 1 ohm
• 1 x 1500 Watts @ 2 ohms Bridged (Strapped)

Remote Level Control

• Included

Dimensions

• Dimensions: 6.1″ W x 8.62″ L x 2.01″ H

Performance

• Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
• S/N Ratio: 92.2 dBa, Ref 300 Watts @ 4 ohms
• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 80 Amps
• Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
• Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
• EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
• Speaker Terminal Wire Gauge: 8 AWG
• Strapable: Yes
• Epicenter Link: Yes

Features

• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included
• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®
