AudioControl A800.1 Altitude Series Mono Amplifier 800 watts RMS x 1 at 1.33 ohms

Flying high in first-class

AudioControl's Altitude A800.1 mono subwoofer amplifier's sleek anodized aluminum chassis protects the precision high-spec electronic components inside and provides high-temperature thermal dispersion through its stylish cooling fins. AudioControl designed this Altitude amplifier to power the subwoofer system in almost any vehicle — including some vehicles with stop-start electrical systems.

Performance

The A800.1 can power a single 4-ohm sub with 400 watts RMS, for those who want to add some bass-fill to their overall sound. For a 2-ohm sub setup, the amp puts out 600 watts, so you'll hear and feel all the fine details of the bass clearly when you're on the go. Adjustable low-pass and subsonic crossovers plus a parametric-style bass boost help achieve the perfect bass tone. In Spike Mode, the amp can handle three 4-ohm subs, wired together in parallel to equal a 1.33-ohm load and send them a total of 800 watts, over 260 watts per sub. An optional wired remote bass knob lets you control the sub-level from your front seat.

Volume-level security

The A800.1 has a Valet Mode feature that limits the amp's volume to 25% of its maximum when you engage it with your custom-installed switch (not included) — so parking lot attendants or your teenagers' friends can't damage your subwoofers by cranking up the volume too high when you're not around.

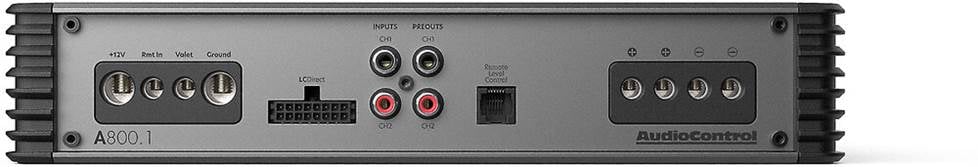

A800.1 connection panel

Product Features:

• High/Low Input Modes
• GTO™ Signal Sense
• Linkwitz-Riley Crossovers
• Start-Stop Compliant
• High Power Output in a Sleek Chassis
• ParaBASS® Low-Frequency Contouring
• Valet Mode Option
• Optional Remote Level Control (ACR-1)
• EV Compliant up to 17V
• Spike Mode Enabled

SPECIFICATIONS

INPUTS

• Preamp Inputs: 2
• Line-Level Inputs: 6 V max
• Speaker-Level Inputs: 20 V max

OUTPUTS

• Rated Continuous (RMS) Power at 14.4V
• 400W x 1 @ 4Ω
• 600W X 1 @ 2Ω
• 800W x 1 @ 1.33Ω
• Remote Level Control - ACR-1 (optional)

WEIGHTS & DIMENSIONS

• DIMENSIONS: 10.9” W x 6.7” D x 2.1” H
• WEIGHT: 6.05 lbs

PERFORMANCE

• S/N Ratio (ref: rated power): 110.2 dBA
• THD+N: <0.14%
• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse rating: 100A
• Valet Mode: Yes
• Subsonic Filter: Variable
• Linkwitz-Riley X-Over:
• Low Pass
• Freq. Range: 60 Hz to 120 Hz
• Bass Processing: ParaBASS®
