Alpine Adventure Audio System Range - SWA-150KIT
Premium Alpine Sound System for Fiat Ducato, Citroën Jumper 2 and Peugeot Boxer 2.
Stage 3: Upgrade to Concert Ensemble SPC-R100-DU, SWC-D84S and SWA-150KIT Amplifier System for Fiat Ducato
Alpine Adventure Audio sound systems are designed to deliver excellent sound quality and match the needs of motorhomes and camping vans.
These systems feature new, innovative audio technologies to achieve the best sound quality in your motorhome. Alpine offers a sound system upgrade in 3 stages for the Fiat Ducato 3 and the same platform of vehicles.
You can further improve the bass output and dynamic of your SWC-D84S subwoofer system by adding this 150-watt power amplifier.
The amplifier itself can easily be installed in the compartment behind the cup holder. There is also a wired bass remote knob included, that can be installed in the dashboard for quick and easy access to the bass power adjustment.
Compatible with Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2.
Alpine Adventure Audio - Sound Experience
We highly recommend upgrading your Fiat Ducato to the Concert Ensemble (consisting of the SPC-R100-DU 12 cm Radial Speaker System, SWC-D84S Subwoofer System and SWA-150KIT Power Amplifier Kit) for the best sound experience in your motorhome.

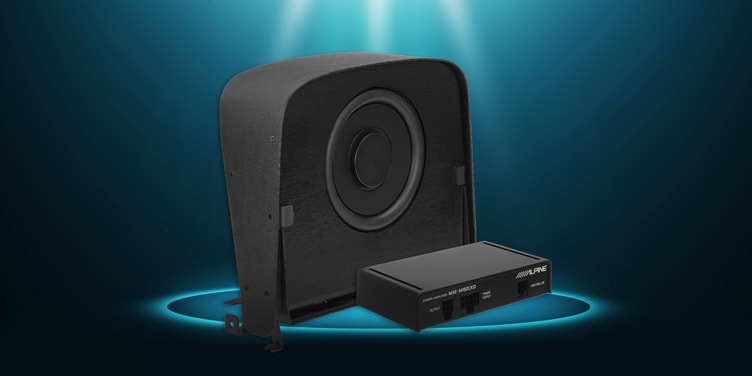

Recommended Power-Upgrade
The SWA-150KIT is a highly recommended upgrade for your SWC-D84S subwoofer system. By adding this amplifier kit, you complete the “Concert Ensemble” for your motorhome and you can enjoy great dynamics and exciting bass sound.

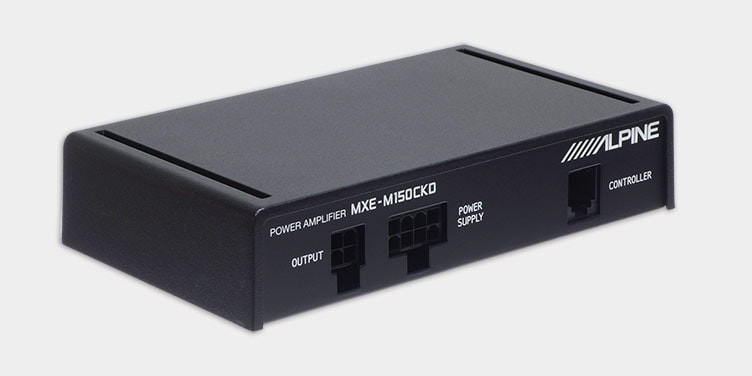

150 Watts Amplifier
The included amplifier features a max power output of 150 Watts. Each output channel drives one of the SWC-D84S’s voice coils, ensuring excellent dynamic and fast response speed. The amplifier is very compact and can be easily installed in the compartment behind the cup holder.

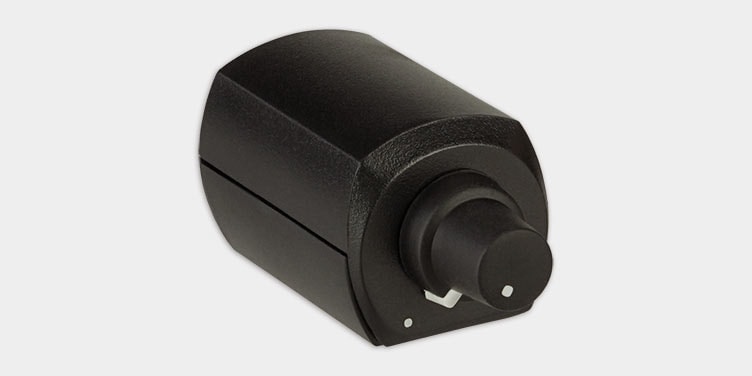

Included Bass Remote
A bass remote knob allows quick access to the amplifier gain. The included controller gets installed in the dashboard and is connected by wire to the amplifier. This makes it very easy to adjust the bass according to the situation, such as driving on a noisy highway or when parked on a camping site.

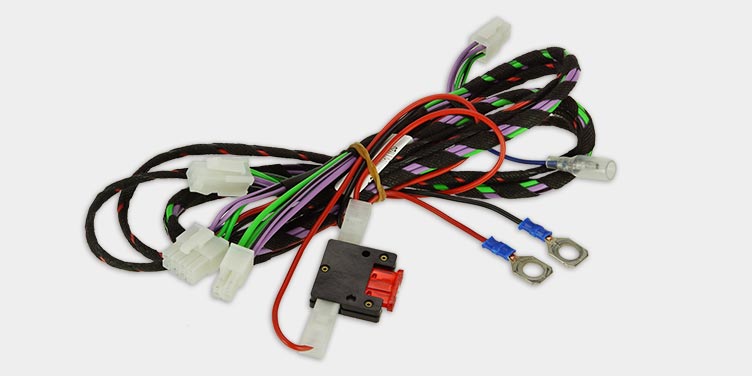

Included Wiring Kit
The included wiring kit makes the installation of the amplifier and adaptation to the radio very easy. Note that if you have an original wiring harness with 52-pin connector, an additional ISO cable adapter is required (sold separately by 3rd party companies).
Product Features:
Installation
- Terminal Layout: One side
- Small footprint for easy installation
General
- Amplifier Type: Class-AB
- Channel Design: 2-Channel Input (summed to mono)
- Thermal Management Control
- Speaker Level Input with remote turn on
- Crossover: Low-pass filter (LPF)
- Gain Control: Adjustable
- Wired bass remote and wiring harness included
Specifications
Max Power Output
- Per Channel into 2 Ohms, 14.4V: 2 x 75W
Application
- Designed to work with SWC-D84S subwoofer system
General
- Power Requirements: 14.4 V.DC (9 - 16 V allowable)
- High-Level Input with remote power on
- Frequency response: 20 to 125Hz (+0/-3dB)
- Weight: 0,3kg
Compatible with the following vehicles:
| Car Make / Model | Year | Remarks |
| Citroen Jumper | 2006 Onwards | II (250) |
| Fiat Ducato | 2006 Onwards | II (250) |
| Fiat Ducato | 2011 - 2014 | III Facelift (250) |
| Fiat Ducato | 2014 Onwards | III (290) |
| Peugeot Boxer | 2006 Onwards | II (250) |
Note: Compatible with original radio and aftermarket head units.
| Price | £129.99 |
|---|---|
| Manufacturer | Alpine |
| Vehicle Manufacturer | Citroen, Fiat, Peugeot |
